UpMap Dash Diagnostic Cable for Service Reset

UpMap Dash Diagnostic Cable for Service Reset

Fitment:

• 2017-2020 Aprilia RSV4 (all variants)
• 2017-2020 Aprilia Tuono V4 (all variants)

Product Description

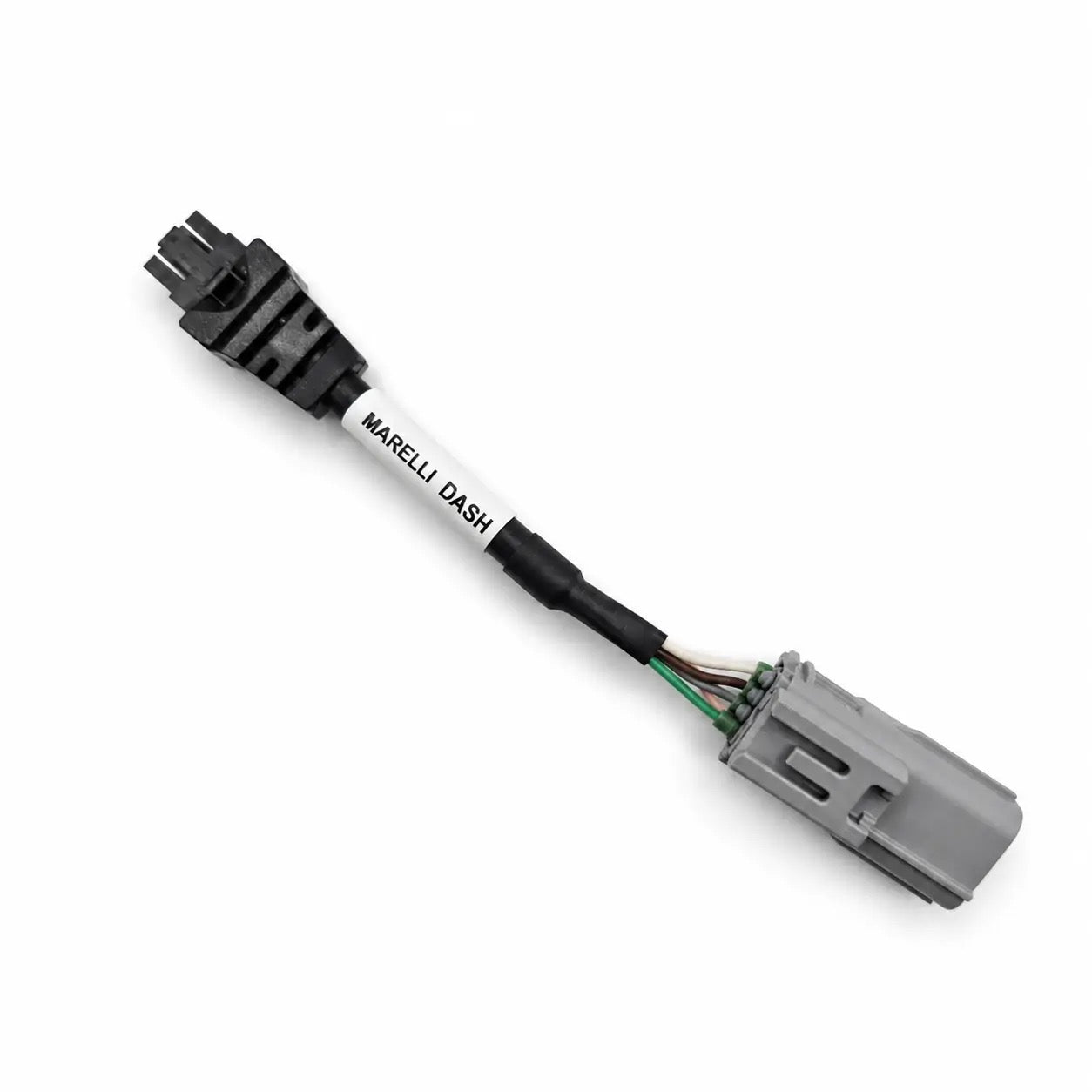

UpMap Dash Diagnostic Cable is the dedicated cable for using the special RESET SERVICE function on selected Aprilia Euro4 models. This cable allows the UpMap system to communicate with the dashboard and reset the service warning light, also known as the red wrench icon, after scheduled maintenance.

This product is designed for riders and workshops that need to reset the service indicator on compatible Aprilia V4 Euro4 motorcycles using the UpMap special function. It is a specific diagnostic cable for the dashboard service reset function, not a general ECU programming cable.

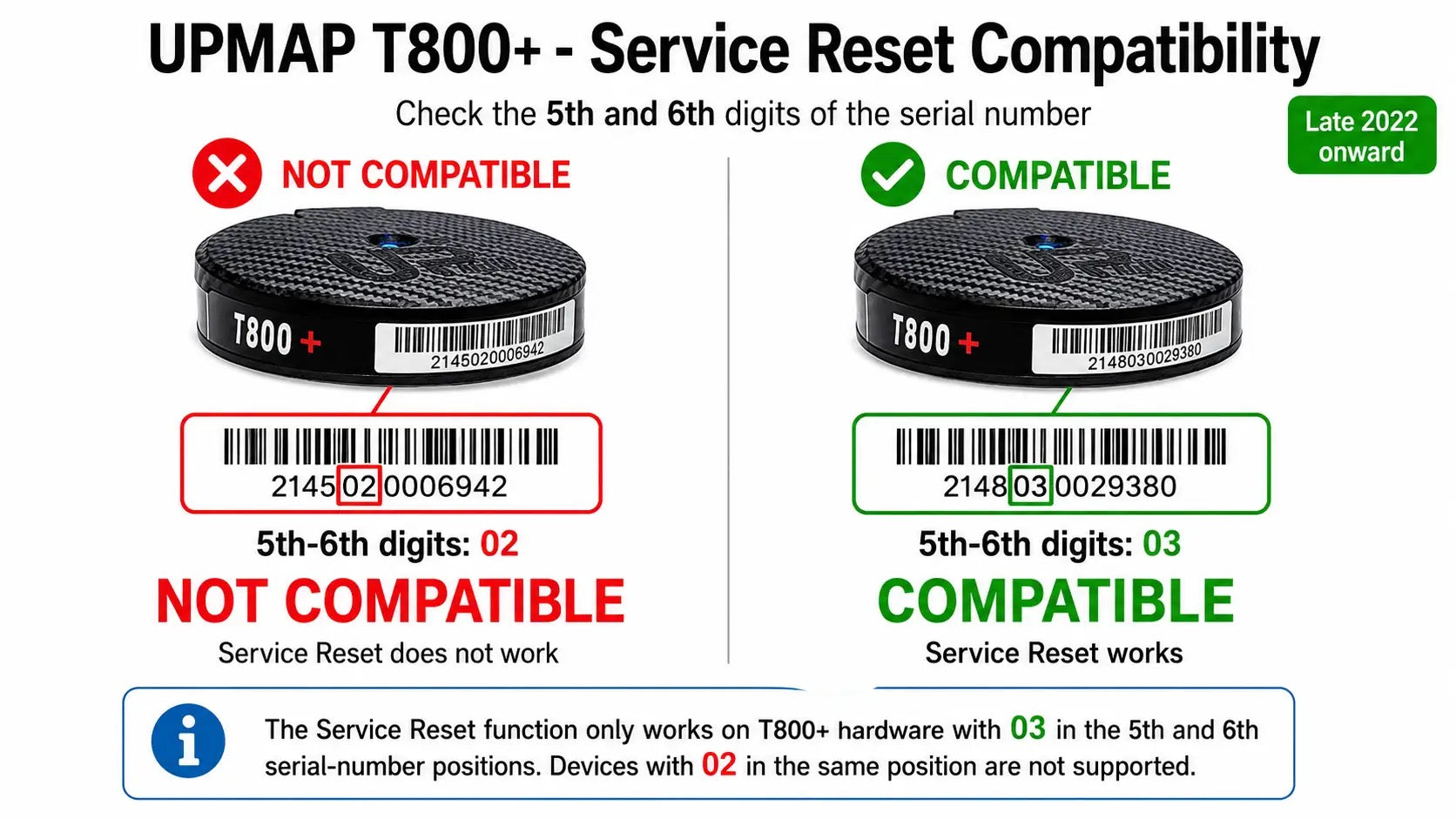

IMPORTANT: before buying this cable, check the serial number of your UpMap T800+. This cable works only with T800+ devices where the 5th and 6th digits of the serial number are 03. If your device has 02 in that position, this cable will not work.

IMPORTANT: this cable does not allow you to upload maps or reflash the ECU. To load maps, you must use the standard Marelli cable supplied with the T800 / T800+.

The cable includes a €68 discount voucher for downloading an UpMap tune, including MTORQUE maps where available. This voucher is for the map purchase, but the map installation itself must be done using the correct Marelli ECU cable, not this dashboard diagnostic cable.

Main Benefits

• Enables the UpMap RESET SERVICE special function
• Allows service warning light reset on compatible Aprilia Euro4 dashboards
• Useful for workshops and advanced users after scheduled maintenance
• Dedicated dashboard diagnostic cable for service reset only
• Includes €68 UpMap map discount voucher

Technical Details

• Product Type: UpMap dashboard diagnostic cable
• Function: service reset / dashboard diagnostic connection
• Compatible Device: UpMap T800+ with serial number 03 in the 5th and 6th digit
• Not Compatible: T800+ devices with 02 in the 5th and 6th digit
• Map Upload: not supported with this cable
